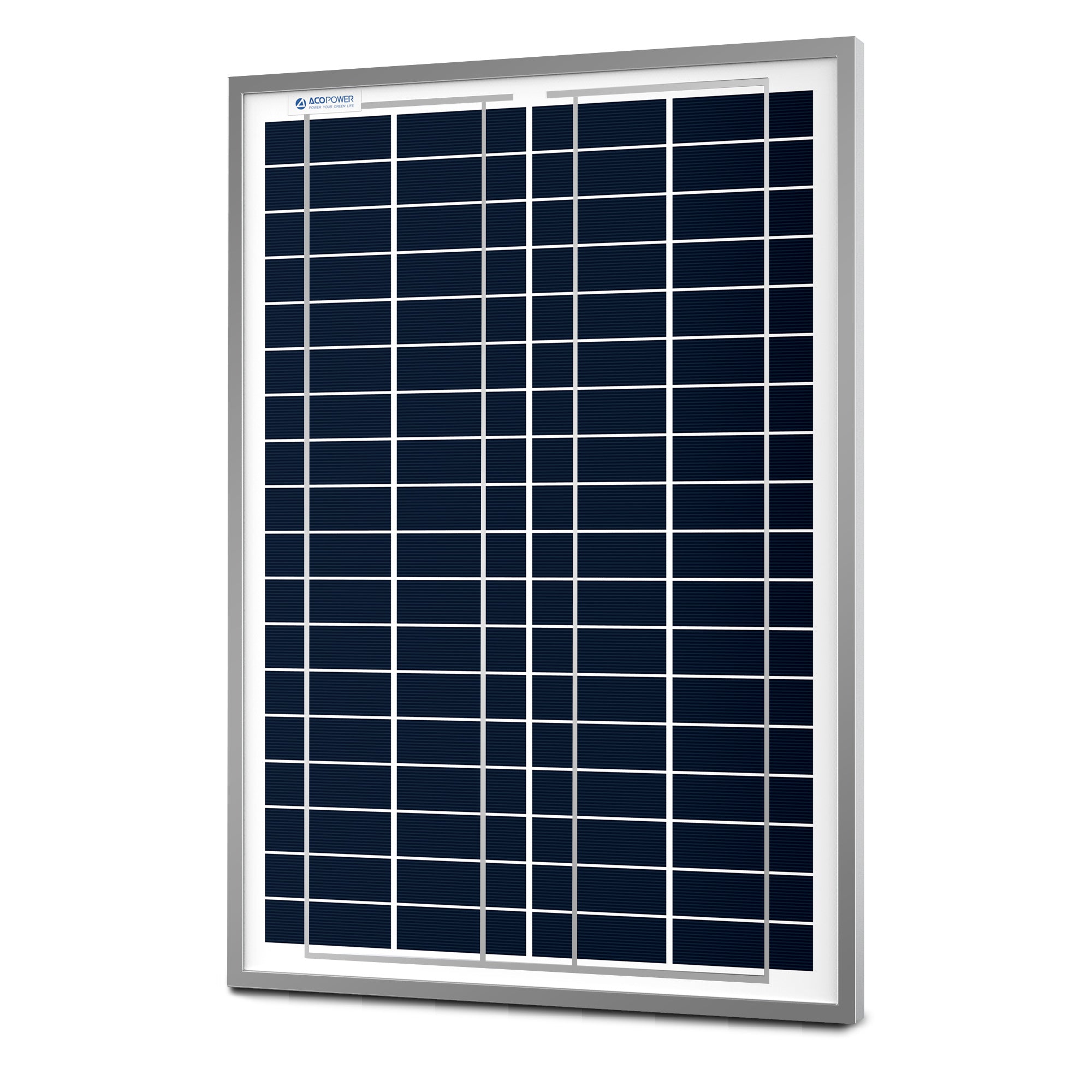

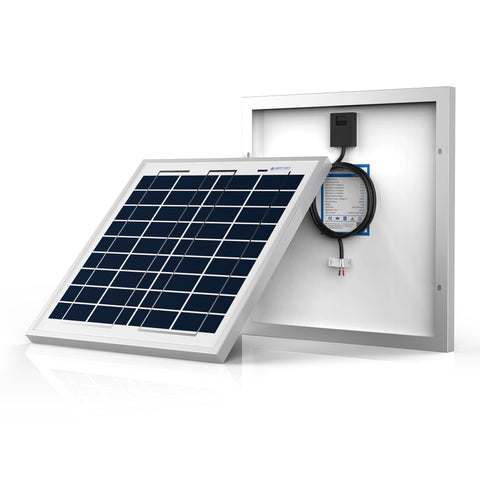

ACOPOWER Poly Solar Panel——15W, 25W, 35W
Regular price
£28.00
Sale price
£28.00
Regular price
AdventureCarousel Pre-order now! 🌟Shipping starts September 15th! 🎉
Free Shipping to United States...
Estimated Dispatch within 2 Business Days
more
Estimated Dispatch within 2 Business Days
Arrive within 2-7 Business Days
*US,AU,CA only. For other regions, click "More"
more
*US,AU,CA only. For other regions, click "More"
Pickup available at Walnut USA
*Usually ready in 24 hours
more
*Usually ready in 24 hours
30-Day Return Policy|18-Month Warranty Protection
more
Ways To Pay
Don't Miss Top Accessories
-
Regular price £182.00Sale price £182.00 Regular price
Features
High Wind
2400Pa
12V solar panel can withstand all weather conditions suchas sandstorm,strong wind,thunderstorm, blizzard, hail,etc.lt can withstand up to 2400Pa wind pressure
Waterproof
IP65
Low-iron tempered qlass surface and corrosion-resistantaluminum frame, make this solar panel 100% waterproof
Snow Cover
5400Pa
12V solar panel can withstand all weather conditions such as sandstorm, strong wind, thunderstorm, blizzard, hail, etc. It can withstand up to 5400Pa snow load
Specifications
Specification
HY015-12P | HY025-12P | HY035-12P | |
---|---|---|---|
Characteristics | 15W | 25W | 35W |
Open-Circuit Voltage(Voc) | 21.7V | 22.0V | 22.0V |
Optimum Circuit Voltage(Vmp) | 17.5V | 17.5V | 17.5V |
Short-Circuit Current(Isc) | 0.95A | 1.54A | 2.15A |
Optimum Circuit Current(Imp) | 0.87A | 1.43A | 2.00A |
Maximum Power at STC(Pmax) | 15W | 25W | 35W |
Module Efficiency | 10.42% | 11.06% | 11.56% |
Operating Temperature | -40°C ~ +85°C | -40°C ~ +85°C | -40°C ~ +85°C |
Maximum System Voltage | 1000V DC | 1000V DC | 1000V DC |
Power tolerance | ±3% | ±3% | ±3% |
Type of cell | Poly-crystalline 156 x 156 mm (5 inches) | Poly-crystalline 156 x 156 mm (5 inches) | Poly-crystalline 156 x 156 mm (5 inches) |
Dimensions | 370x360x20mm (14.6x14.2x0.8 in) |
510x360x20mm (20.1x14.2x0.8in) |
730x360x25mm (28.7x14.2x1 in) |
Weight | 1.8 Kg (4.0 lbs) | 3.2 Kg (7.0 lbs) | 4.1 Kg (9.0 lbs) |
Workmanship Warranty | 10-Year | 10-Year | 10-Year |
Performance Warranty | 25-Year Power Output Warranty |
25-Year Power Output Warranty |
25-Year Power Output Warranty |
